ASTM A335 P5 P9 P11 P22 Studded Tube Heat Exchange System

Produktdetails:

Herkunftsort:	CHINA
Markenname:	YUHONG
Zertifizierung:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Modellnummer:	ASTM A335 P5 P9 P11 P22 Sternte

Zahlung und Versand AGB:

Min Bestellmenge:	500 kg
Verpackung Informationen:	PLY-Wooden-Fall /Eisenfall
Lieferzeit:	7 Tage
Zahlungsbedingungen:	L/c, t/t

Kontakt

Alle Produkte

Nahtlose Rohre aus Edelstahl (290)

Edelstahl-nahtloses Rohr (277)

Duplexedelstahl-Rohr (127)

Duplexedelstahl-Rohr (29)

Nadelröhre (107)

Flossenröhrchen (631)

Wärmetauscher (17)

Wärmetauscherrohr (424)

Wärmetauscher-Rohrbund (37)

Wärmetauscher-Rohrboden (116)

Wärmetauscherleitblech (36)

Luftkühler (8)

Druckbehälter (4)

Edelstahl geschweißtes Rohr (57)

Edelstahl geschweißtes Rohr (114)

Nickel-Legierungs-Rohr (261)

Nickel-Legierungs-Rohr (79)

Kupferlegierungs-Rohr (227)

Legierter Stahl-Rohr (184)

Titanrohr (10)

helles getempertes Rohr (153)

Rauchrohr (145)

Stahlinstallation (804)

Stahlflansch (590)

Andere (391)

Teile für Verkleidungen (7)

Ausführliche Produkt-Beschreibung

Produktname:	Verziertes Rohr	Rohrmaterial:	Kohlenstoffstahl, Edelstahl, Legierungsstahl
Typ:	Schweißen, verziert	Rohr OD:	20mm bis 219mm
Rohrdicke:	2mm bis 16mm	Rohrlänge:	kann angepasst
Flossendicke:	0.8mm bis 4mm	Flossendichte:	43 Flossen pro Meter zu den maximalen 287 Flossen pro Meter
Flossenhöhe:	0,25" (6.35mm) bis 1,5" (38mm)	Anwendung:	Luftkühler, Wärmetauscher, Zerstäuber, Kondensator

ASTM A335 P5 P9 P11 P22 Studded Tube Heat Exchange System

What is a Studded Tube?

This is a specialized component designed for use in high-temperature and corrosive environments. Unlike finned tubes, which maximize convection surface area, studded tubes are primarily used to secure and protect refractory linings or to facilitate heating in certain furnace types.

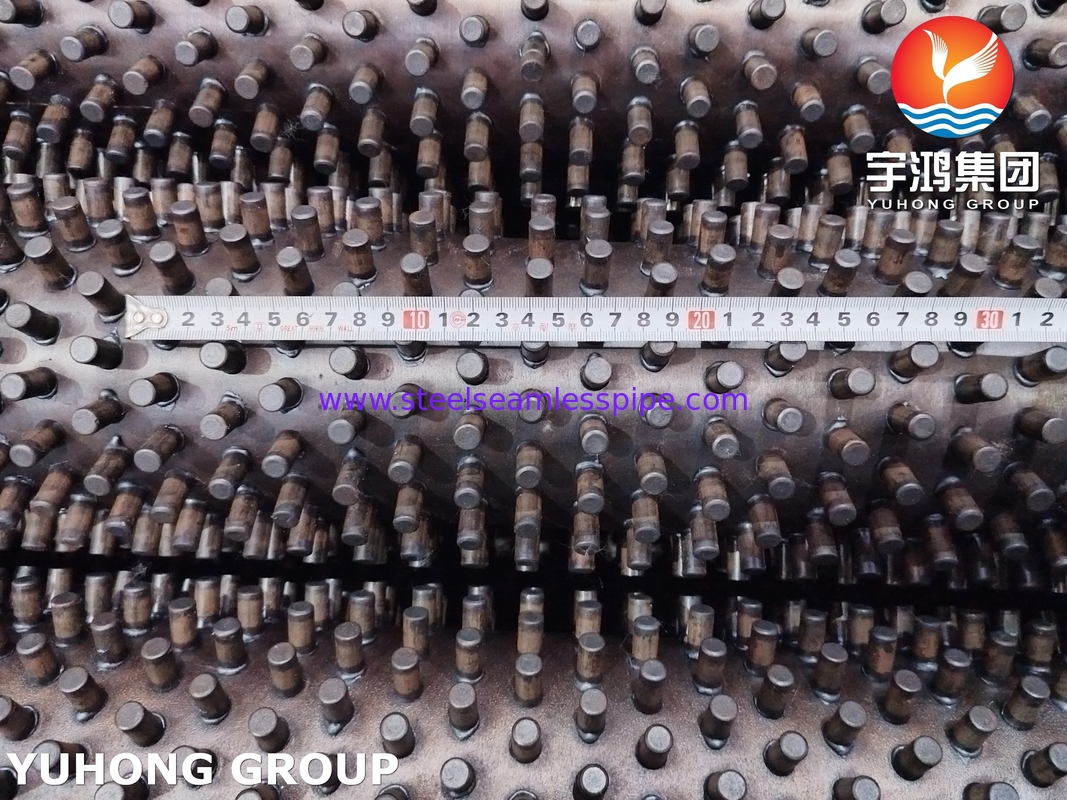

Studded tubes are manufactured by welding a series of studs (pins) to the outer surface of a base tube. These studs act as anchors, securing the castable refractory material to the tube surface.

ASTM A335 P5 base tube, combined with studs made from compatible materials, creates a robust system for lining furnaces, boilers, and reactors.

Studded Tube

Product:	studded tubes, welded stud tubes,studded steel tubes,studded fin tubes
Application:	, generally in furnaces and boilers where the surface is exposed to a very corrosive environment and where very dirty gas streams require frequent or aggressive cleaning.
Size:	OD: 38 mm ~219 mm
	WT: 4.0 mm ~20 mm /Tube Length (Mtr) :≤ 15Mtrs
	Fin Height: 6.0 mm ~ 38 mm
Base Tube(fin) Material:	Carbon Steel
	Alloy Steel
	Stainless Steel

Studded pipe size and material

Tube O.D.:	25~355.6 (mm)	1”~14”(NPS)
Tube Wall Thk.:	3.5~28.6 (mm)	0.14”~1.1”
Tube Length:	≤25,000 (mm)	≤82 ft

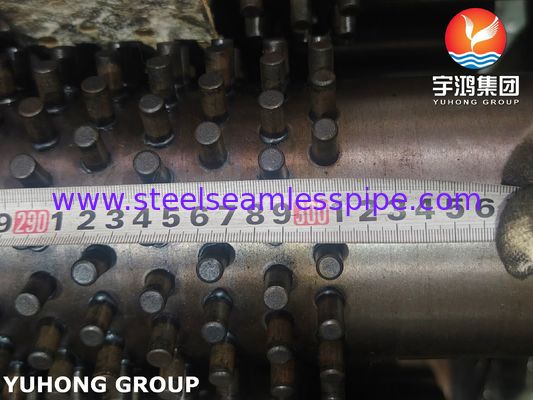

Stud Dia.:	6~25.4 (mm)	0.23”~1”
Stud Height:	10~50.8 (mm)	0.4”~2”
Stud Pitch:	8~30 (mm)	0.3”~1.2”
Stud Shape:	Cylindrical, Elliptical, Round, Lens type
Stud to tube surface angle:	Vertical, angular, staggered rows
Stud Material:	C.S. (most common grade is Q235B) S.S. (most common grade are AISI 304, 316, 409, 410, 321,347 ) A.S.
Tube Material:	C.S. (most common grade is A106 Gr.B) S.S. (most common grade are TP304, 316, 321, 347 ) A.S.(most common grade are T/P5,9,11,22,91 )
* This table is used as a general guide to our capabilities, please call us for any other customized cases.

Type	Description	Base tube	Fin specification (mm)
Type	Type	O.D. (mm)	Fin pitch	Fin height	Fin thick
Welding	HFW fin tube	16-219	3-25	5-30	0.8-3
	H/HH Type Fin Tube	25-63	8-30	<200	1.5-3.5
	Studed fin tube	25-219	8-30	5-35	φ5-20

Alloy Steel Chemical Compositions

Grade	UNS Designation	Composition, %
Grade	UNS Designation	Carbon	Manganese	Phosphorus, max	Sulfur, max	Silicon	Chromium	Molybdenum
P1	K11522	0.10-0.20	0.30-0.80	0.025	0.025	0.10-0.50	--	0.44-0.65
P2	K11547	0.10-0.20	0.30-0.61	0.025	0.025	0.10-0.30	0.50-0.81	0.44-0.65
P5	K41545	0.15MAX	0.30-0.60	0.025	0.025	0.50MAX	4.00-6.00	0.45-0.65
P9	K90941	0.15MAX	0.30-0.60	0.025	0.025	0.25-1.00	1.00-1.50	0.44-0.65
P11	K11597	0.05-0.15	0.30-0.60	0.025	0.025	0.50-1.00	1.00-1.50	0.44-0.65
P12	K11562	0.05-0.15	0.30-0.61	0.025	0.025	0.5MAX	0.80-1.25	0.44-0.65
P15	K11578	0.05-0.15	0..30-0.60	0.025	0.025	1.15-1.65	--	0.44-0.65
P21	K31545	0.05-0.15	0.30-0.60	0.025	0.025	0.50MAX	2.65-3.35	0.80-1.06
