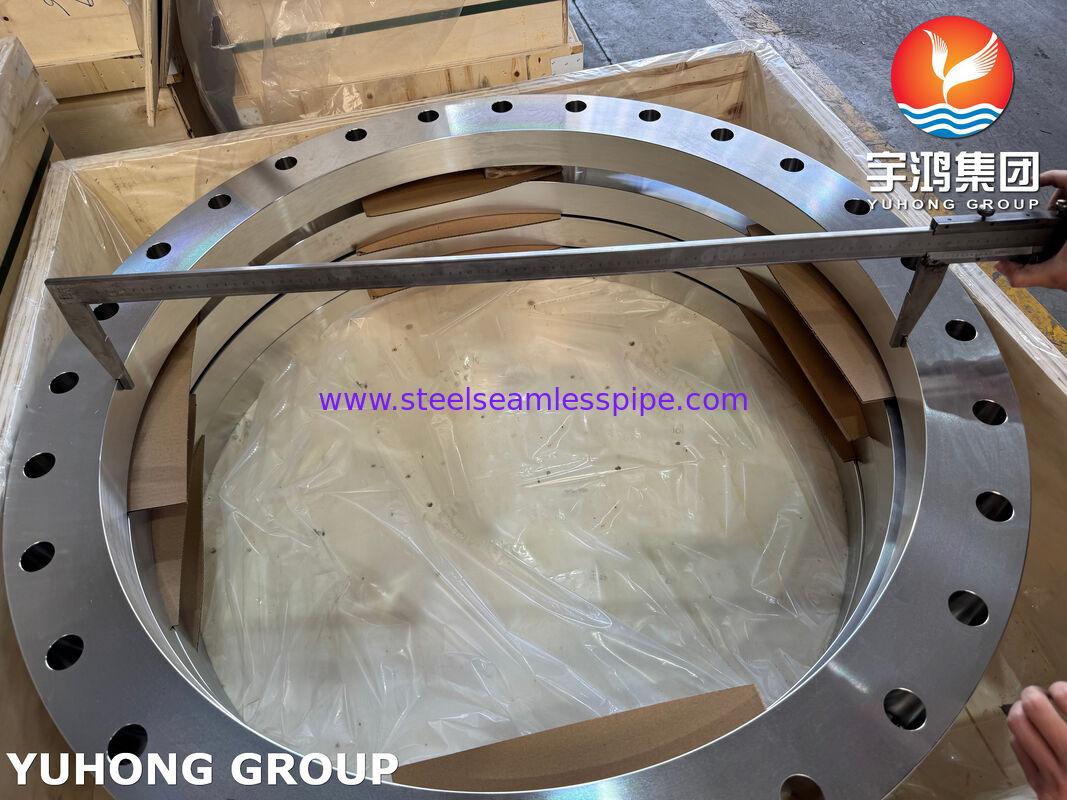

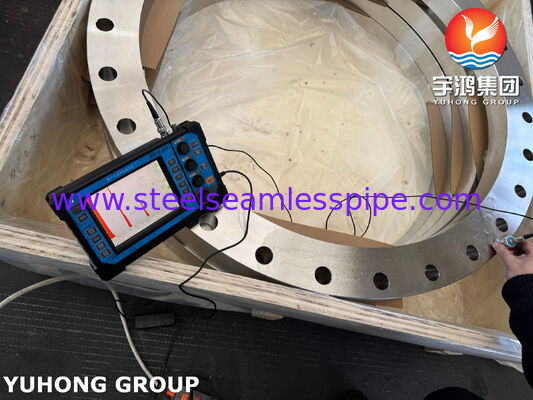

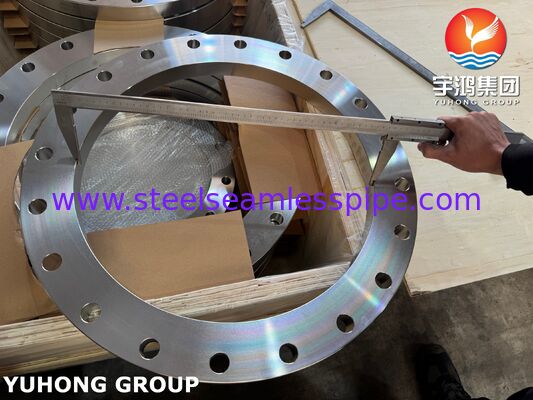

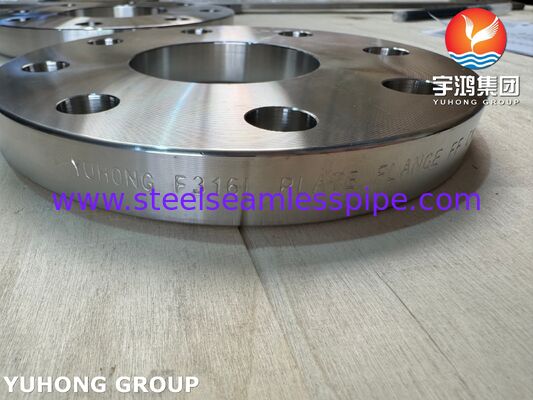

EN1092-1 Type 01A Plate Flange A182 F316L Stainless Steel Flange Flat Face Flanges

Produktdetails:

Herkunftsort:	China
Markenname:	YUHONG
Zertifizierung:	ISO, API , ABS, DNV, GL , LR, NK
Modellnummer:	EN1092-1 F316L Edelstahlplattenflansch

Zahlung und Versand AGB:

Min Bestellmenge:	1 STÜCK
Verpackung Informationen:	Zwischengeschirr aus Zwischengeschirr
Lieferzeit:	7 Tage
Zahlungsbedingungen:	L/C, T/T

Kontakt

Alle Produkte

Nahtlose Rohre aus Edelstahl (327)

Edelstahl-nahtloses Rohr (322)

Duplexedelstahl-Rohr (134)

Duplexedelstahl-Rohr (36)

Nadelröhre (152)

Flossenröhrchen (698)

Wärmetauscher (24)

Wärmetauscherrohr (456)

Wärmetauscher-Rohrbund (46)

Wärmetauscher-Rohrboden (124)

Wärmetauscherleitblech (39)

Luftkühler (10)

Druckbehälter (4)

Edelstahl geschweißtes Rohr (61)

Edelstahl geschweißtes Rohr (130)

Nickel-Legierungs-Rohr (271)

Nickel-Legierungs-Rohr (96)

Kupferlegierungs-Rohr (247)

Legierter Stahl-Rohr (208)

Titanrohr (20)

helles getempertes Rohr (173)

Rauchrohr (151)

Stahlinstallation (855)

Stahlflansch (655)

Andere (404)

Teile für Verkleidungen (8)

Ausführliche Produkt-Beschreibung

Produktname:	Edelstahlflansch	Standard:	EN1092-1 / ASTM A182 / ASME SA182
Material:	F316L	Klasse:	150#, 300#, 400#, 600#, 900#, 1500#, 2500#
Typ:	PL, WN, SO, BL, SW, LWN	Gesicht:	RF, FF, RTJ
Anwendung:	Erdöl, Chemikalie usw., Armaturen und Verbindung, Bier
Hervorheben:	EN1092-1 Type 01A stainless steel flange , A182 F316L flat face flange , plate flange with flat face

EN1092-1 Type 01A Flat Faced Plate Flange F316L Stainless Steel Flange

An EN 1092-1 Type 01A Flat Face Plate Flange made of ASTM A182 F316L stainless steel is a flat, circular steel disc with bolt holes but no hub or raised face. It is designed to be welded directly to a pipe or fitting and uses a full-face gasket (flat sealing surface). The material F316L is a low-carbon, molybdenum-bearing austenitic stainless steel that provides excellent corrosion resistance, especially against chlorides and acids, and resists sensitization after welding.

EN 1092-1 & ASME B16.5 / B16.47 Flange Which One to Use?

EN 1092-1: Requires standard number, type, DN, PN, material, manufacturer, heat number.
ASME B16.5: Requires manufacturer name or trademark, material designation (e.g., A182 F316L), class, NPS, schedule (if applicable), B16.5, and heat number.

Scenario	Recommendation
Project in Europe, Asia, or spec calls for PN	Use EN 1092-1
Project in North America, or spec calls for Class	Use ASME B16.5 / B16.47
Connecting to existing flanges	Must match the standard – do not mix EN and ASME directly
International oil & gas (offshore)	Often ASME, but some European operators accept EN with PN/Class conversion
* Never directly bolt an EN 1092-1 flange to an ASME B16.5 flange. Bolt circle diameters, hole sizes, and facing dimensions are different. Use a proper adapter flange or a custom-made transition piece designed to both standards.

Equivalent Materials of EN1092-1 F316L Stainless Steel Plate Flange

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316L	1.4404	S31603	SUS 316L	316S11	03Ch17N14M3	Z3CND17‐11‐02	X2CrNiMo17-12-2

Chemical Composition % of EN1092-1 F316L Stainless Steel Plate Flange

SS	UNS	C	MN	P	S	SI	CR	NI	MO	NB	TI
F316L	S31603	0.030	2.00	0.045	0.030	1.00	16.0-18.0	10.0-15.0	2.0-3.0	---	---

Application

Low-pressure piping systems (water, chemicals, oil, gas) where flat face is required (e.g., connecting to plastic, FRP, or cast iron flanges).
Marine and offshore environments – F316L resists pitting and crevice corrosion from seawater.
Pharmaceutical and food processing – easy to clean, no crevices (when full-face gasket used).
Heat exchanger and vessel nozzles with flat face gaskets.
Wastewater treatment – resistance to chlorides and mild acids.
