ASTM A335 P22 Studded Fin Tubes
Product Overview
ASTM A335 P22 Studded Fin Tubes are premium alloy steel heat transfer components specifically engineered for high-temperature and high-pressure service. Manufactured from ASTM A335 Grade P22 seamless ferritic alloy steel, these tubes are fitted with solid studs that are resistance welded uniformly around the tube surface, significantly increasing the effective heat transfer area while maintaining excellent mechanical integrity.
The chromium-molybdenum composition of P22 steel provides superior oxidation resistance, creep strength, and elevated-temperature performance, making these studded tubes an ideal choice for severe operating environments where conventional finned tubes may suffer erosion or fouling.
Studded fin tubes are widely installed in boilers, fired heaters, waste heat recovery units, petrochemical furnaces, fluidized bed boilers, incinerators, and refinery process heaters where durability and long service life are essential.
Features
- Manufactured from ASTM A335 Grade P22 seamless alloy steel
- Excellent creep resistance at elevated temperatures
- High resistance to oxidation and scaling
- Superior thermal fatigue performance
- Stud welding provides outstanding mechanical strength
- Excellent resistance to erosion in dirty gas environments
- Suitable for severe thermal cycling applications
- Longer operating life with reduced maintenance
- Improved heat transfer efficiency
- Designed for continuous high-temperature operation
Typical Applications
ASTM A335 P22 Studded Fin Tubes are extensively used in:
- Fired Heaters
- Waste Heat Recovery Boilers (WHRB)
- Petrochemical Furnaces
- Fluidized Bed Boilers (CFB & BFB)
- Refinery Heaters
- Steam Boilers
- Economizers
- Heat Recovery Steam Generators (HRSG)
- Sulfur Recovery Units
- Thermal Oil Heaters
- Cement Plants
- Power Generation Plants
Manufacturing Process
Studded fin tubes are produced through an automated resistance welding process where individual steel studs are permanently welded onto the outside surface of the seamless P22 tube.
Manufacturing stages include:
- Raw material inspection
- Tube cutting and end preparation
- Automatic stud welding
- Weld integrity verification
- Straightness inspection
- Dimensional measurement
- Heat treatment (when specified)
- Surface cleaning
- Final inspection
- Protective packaging
The finished product offers excellent bonding strength and uniform stud distribution for consistent heat transfer.
Standard Size Range
The following dimensions represent common manufacturing capabilities.
Base Tube
| Item |
Range |
| Outside Diameter |
25.4 mm – 219.1 mm (1" – 8") |
| Wall Thickness |
2.5 mm – 18 mm |
| Tube Length |
Up to 18,000 mm |
| Material Standard |
ASTM A335 Grade P22 |
| Manufacturing |
Seamless |
Stud Dimensions
| Item |
Typical Range |
| Stud Diameter |
6 mm – 15 mm |
| Stud Height |
10 mm – 35 mm |
| Stud Pitch |
8 mm – 30 mm |
| Stud Material |
Carbon Steel / Alloy Steel (per service conditions) |
Custom dimensions are available according to project specifications.
ASTM A335 P22 Chemical Composition
| Element |
Composition (%) |
| Carbon (C) |
0.05–0.15 |
| Manganese (Mn) |
0.30–0.60 |
| Silicon (Si) |
Max 0.50 |
| Phosphorus (P) |
Max 0.025 |
| Sulfur (S) |
Max 0.025 |
| Chromium (Cr) |
1.90–2.60 |
| Molybdenum (Mo) |
0.87–1.13 |
ASTM A335 P22 Mechanical Properties
| Property |
Value |
| Tensile Strength |
≥415 MPa |
| Yield Strength |
≥205 MPa |
| Elongation |
≥30% |
| Hardness |
According to ASTM A335 requirements |
| Service Temperature |
Up to approximately 600°C (application dependent) |
The chromium-molybdenum alloy provides excellent long-term creep resistance under elevated operating temperatures.
Inspection and Testing
Every batch of ASTM A335 P22 Studded Fin Tubes can undergo comprehensive quality inspections to ensure compliance with customer specifications and international standards.
Typical inspection methods include:
Raw Material Inspection
- Material identification
- Mill Test Certificate (MTC) verification
- PMI (Positive Material Identification)

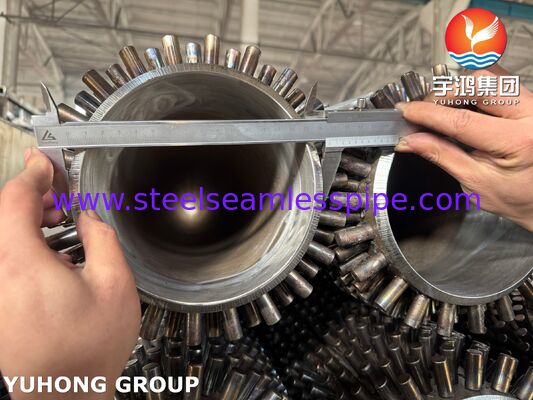

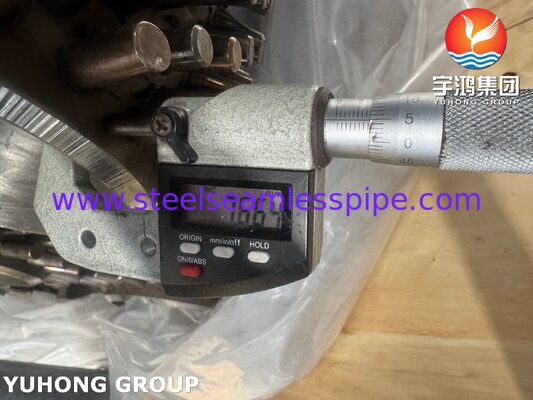

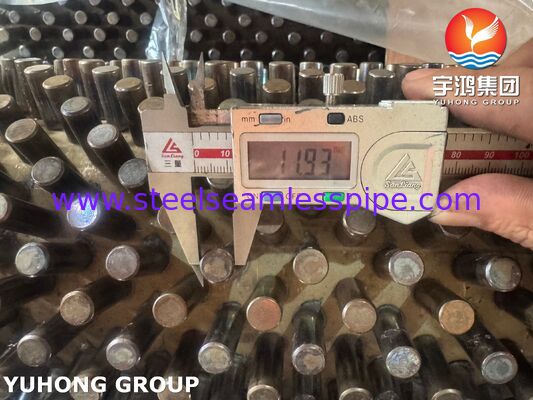

Dimensional Inspection
- Outside diameter
- Wall thickness
- Tube length
- Stud spacing
- Stud height
- Stud alignment
- Straightness measurement
Mechanical Testing
- Tensile test
- Flattening test
- Hardness test
- Bend test (when required)
Non-Destructive Testing (NDT)
- Hydrostatic Test
- Eddy Current Test
- Ultrasonic Testing (UT)
- Magnetic Particle Inspection (MPI)
- Dye Penetrant Inspection (PT) for welded studs
- Visual inspection of stud welds
Weld Quality Inspection
- Weld integrity examination
- Stud pull-off testing (when specified)
- Welding parameter verification
Surface Inspection
- Surface finish examination
- Oxidation inspection
- Defect detection
- Packaging inspection
Advantages of ASTM A335 P22 Studded Fin Tubes
Compared with conventional plain tubes, P22 studded fin tubes provide:
- Increased external heat transfer surface
- Higher thermal efficiency
- Excellent resistance to thermal shock
- Outstanding performance in abrasive gas streams
- Reduced ash accumulation compared to continuous fins
- Lower maintenance costs
- Longer operational lifespan
- Reliable performance under high pressure and temperature
- Excellent resistance to creep deformation
- Improved boiler and furnace efficiency
Quality Assurance
Our ASTM A335 P22 Studded Fin Tubes are manufactured under strict quality management systems to ensure consistent product performance and reliability. Production and inspection can be carried out in accordance with international standards and customer project requirements. Material traceability, welding quality control, and comprehensive testing are maintained throughout the manufacturing process to deliver products suitable for demanding industrial applications.

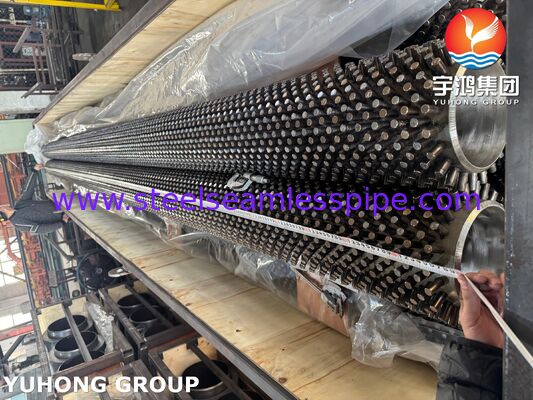

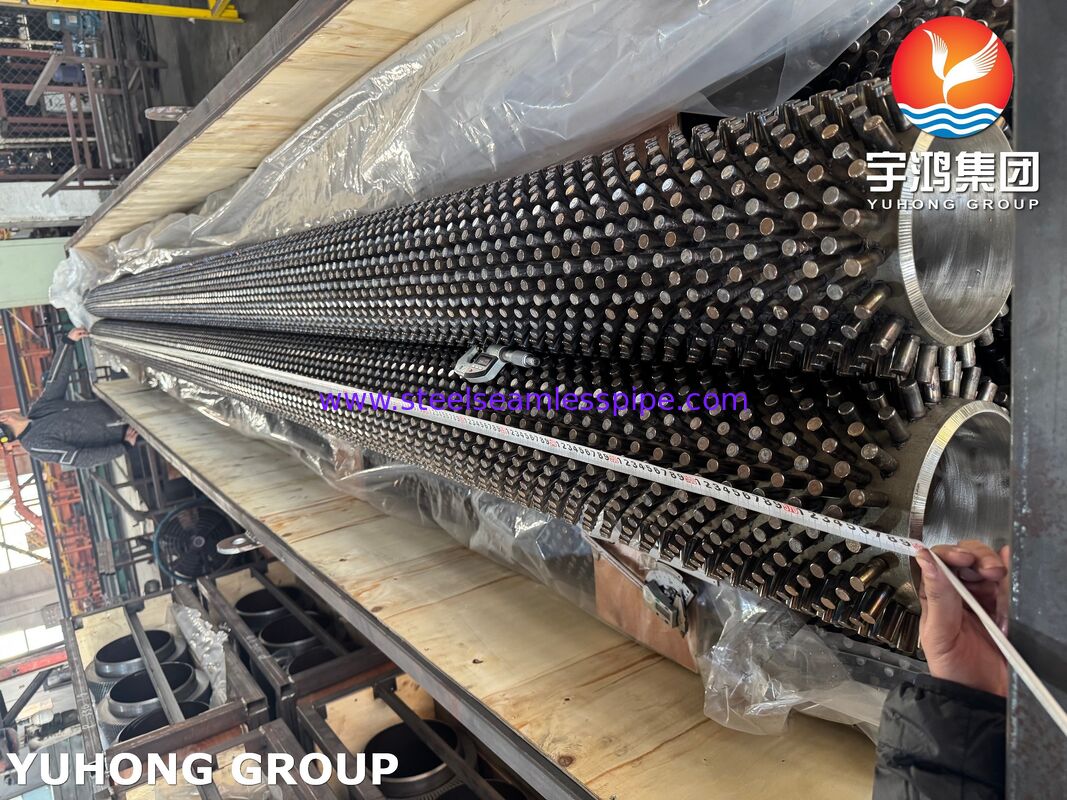

Packaging & Delivery
Products are carefully packaged to prevent mechanical damage and corrosion during transportation.
Packaging options include:
- Steel frame bundles
- Wooden cases
- Export seaworthy packaging
- Plastic end caps
- Moisture-proof wrapping
- Customized packaging upon request
Why Choose Our ASTM A335 P22 Studded Fin Tubes?
- Experienced manufacturer of industrial finned tube solutions
- Advanced automated stud welding equipment
- Strict quality control throughout production
- Custom manufacturing to project specifications
- High-temperature alloy material expertise
- Comprehensive inspection and testing services
- Reliable global delivery
- Technical support for heat exchanger, boiler, and fired heater applications
Our ASTM A335 P22 Studded Fin Tubes are engineered to deliver dependable heat transfer performance, excellent resistance to high-temperature service conditions, and extended equipment life in power generation, petrochemical, refinery, and industrial heating applications.
