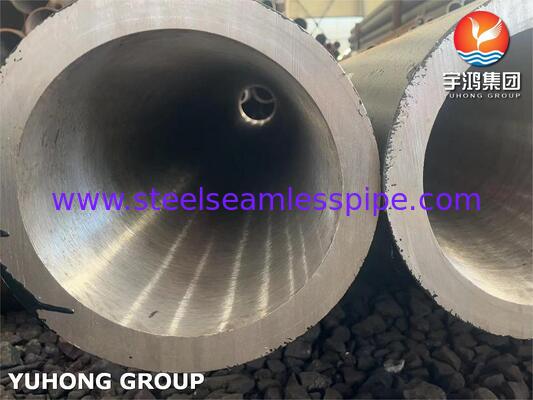

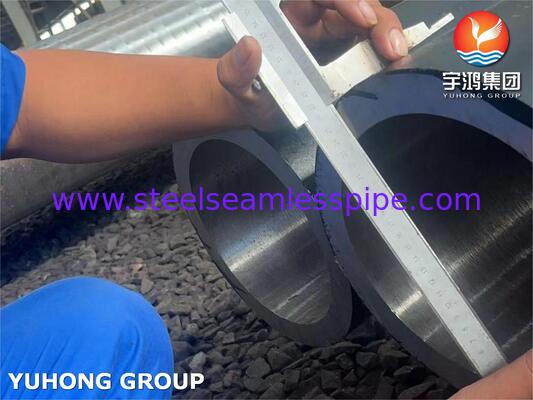

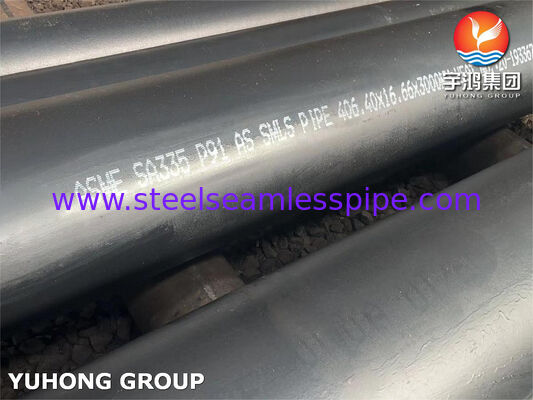

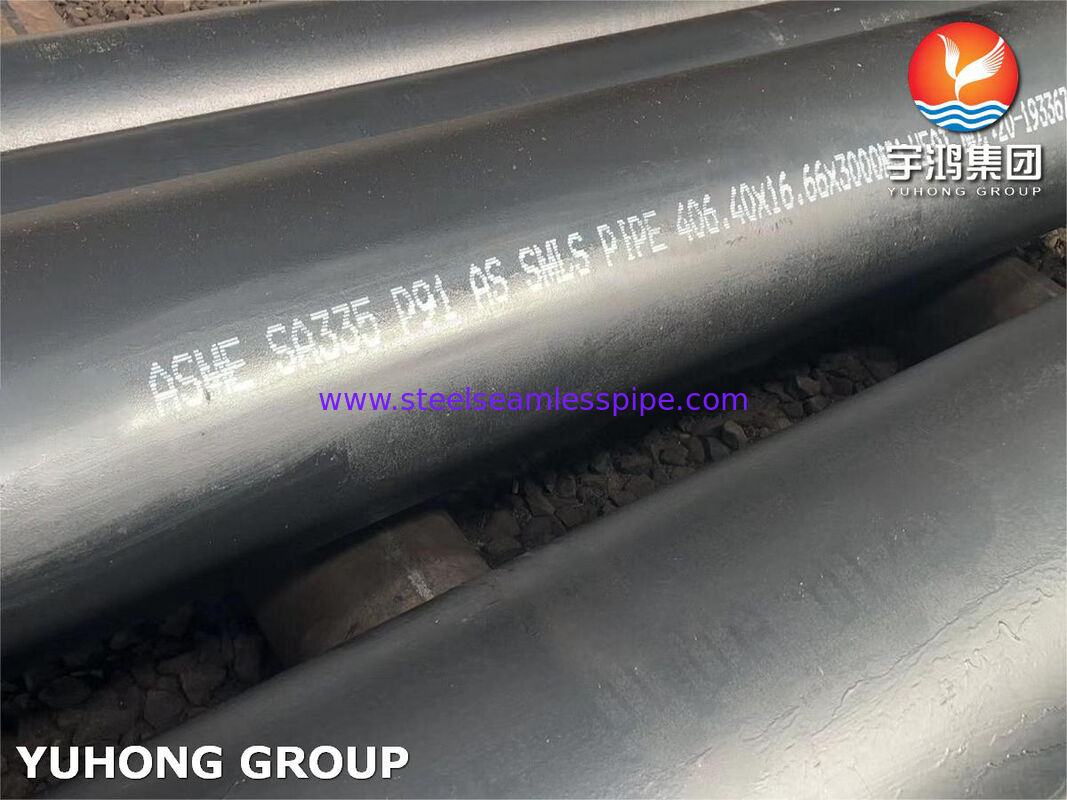

ASTM A335 / ASME SA335 UNS K90901 P91 Boiler Tube EN 1.4903 Alloy Steel Seamless Pipe

Produktdetails:

Herkunftsort:	China
Markenname:	YUHONG
Zertifizierung:	ISO9001-2008, API 5L, API 5CT, PED, AD-2000, EN10204-3.1B
Modellnummer:	ASTM A335 P91 nahtloses Rohr aus Legierstahl

Zahlung und Versand AGB:

Min Bestellmenge:	500 kg
Verpackung Informationen:	Sperrholzgehäuse/Eisengehäuse/Bündel mit Kunststoffkappe
Lieferzeit:	7 Tage
Zahlungsbedingungen:	L/C, T/T

Kontakt

Alle Produkte

Nahtlose Rohre aus Edelstahl (342)

Edelstahl-nahtloses Rohr (335)

Duplexedelstahl-Rohr (134)

Duplexedelstahl-Rohr (39)

Nadelröhre (170)

Flossenröhrchen (733)

Wärmetauscher (35)

Wärmetauscherrohr (472)

Wärmetauscher-Rohrbund (52)

Wärmetauscher-Rohrboden (128)

Wärmetauscherleitblech (39)

Luftkühler (14)

Druckbehälter (4)

Edelstahl geschweißtes Rohr (61)

Edelstahl geschweißtes Rohr (134)

Nickel-Legierungs-Rohr (276)

Nickel-Legierungs-Rohr (104)

Kupferlegierungs-Rohr (257)

Legierter Stahl-Rohr (217)

Titanrohr (21)

helles getempertes Rohr (174)

Rauchrohr (155)

Stahlinstallation (874)

Stahlflansch (671)

Andere (409)

Teile für Verkleidungen (9)

Ausführliche Produkt-Beschreibung

Produktname:	Legierter Stahl-nahtloses Rohr	Standard:	ASTM A335 / ASME SA335
Material:	P91, UNS K90901, EN 1.4903	Od:	1/2" BIS 24 " oder größer
WT:	SCH 10S bis SCH XXS	Länge:	Einfach zufällig, doppelt zufällig und Schnittlänge
Ende:	Glattes Ende, abgeschrägtes Ende	Typ:	Nahtlos
Anwendung:	Kraftwerk, Petrochemie, Kesselrohr, Öl- und Gasindustrie
Hohes Licht:	Nahtloses Rohr aus legiertem Stahl ASTM A335 P91, nahtloses Kesselrohr aus Stahl UNS K90901

ASTM A335 / ASME SA335 P91 Alloy Steel Seamless Pipe for High-Temperature Service

ASTM A335 P91 (UNS K90901 / EN 1.4903) is a high-alloy martensitic steel with ~9% Chromium, Molybdenum, Vanadium, Niobium, and Nitrogen. Designed for boiler tubes and main steam piping, it offers exceptional creep strength up to 620°C and superior oxidation resistance—allowing thinner, lighter walls than traditional low-alloy grades. It is mandatory to use this material in the normalized + tempered condition. Critical warning: It is air-hardening; therefore, all welded joints require strict preheating (200–250°C) and mandatory Post-Weld Heat Treatment (730–760°C) to prevent cracking.

Key Features & Advantages (Why High-Alloyed Grade P91?)

Superior Oxidation Resistance: The ~9% Chromium content provides significantly better resistance to steam-side oxidation and high-temperature flue gas corrosion compared to low-alloy grades (e.g., T22/P22).
High Thermal Stability: Retains strength and structure integrity at extreme temperatures.
Low Thermal Expansion: Lower than austenitic stainless steels (e.g., 304/316), allowing for thinner wall thicknesses and better fatigue resistance under thermal cycling.
Reduced Wall Thickness: Excellent creep strength allows designers to use thinner pipe walls than P22/T22, reducing weight and thermal inertia.

Equivalent Material of ASTM A335 / ASME SA335 UNS K90901 P91 Boiler Tube EN 1.4903 Alloy Steel Seamless Pipe

ASTM	ASME	Equivalent material
A335 P 91	ASME SA 335 P91	1.4903, K90901, X10CrMoVNb9-1

Chemical Composition of ASME SA335 UNS K90901 P91 Boiler Tube EN 1.4903 Alloy Steel Seamless Pipe

Element	Grade	P5	P9	P11	P22	P91	P91 shall also include the following:
Element	UNS	K41545	S50400	K11597	K21590	K91560	P91 shall also include the following:
Carbon		0.15 max	0.15 max	0.05 – 0.15	0.05 – 0.15	0.08 – 0.12	V at 0.18 – 0.25
Manganese		0.30 – 0.60	0.30 – 0.60	0.30 – 0.60	0.30 – 0.60	0.30 – 0.60	N at 0.030 – 0.070
Phosphorous, max		0.025	0.025	0.025	0.025	0.020	Ni at 0.40 max
Sulfur, max		0.025	0.025	0.025	0.025	0.010	Al at 0.02 max
Silicon		0.50 max	0.25 – 1.00	0.50 – 1.00	0.50 max	0.20 -0.50	Cb at 0.06 – 0.10
Chromium		4.00 – 6.00	8.0 – 10.0	1.00 – 1.50	1.90 – 2.60	8.00 – 9.50	Ti at 0.01 max
Molybdenum		0.45 -0.65	0.90 – 1.10	0.44 – 0.65	0.87 – 1.13	0.85 – 1.05	Zr at 0.01 max

Mechanical Properties of ASME SA335 UNS K90901 P91 Boiler Tube EN 1.4903 Alloy Steel Seamless Pipe

Grade	Tensile strength(MPa)	Yield strength(MPa)	Elongation(%)	Impact energy(J)	Hardness
P11	≥ 415	≥ 205	≥ 22	≥ 35	≤ 163HB
P12	≥ 415	≥ 220	≥ 22	≥ 35	≤ 163HB
P22	≥ 415	≥ 205	≥ 22	≥ 35	≤ 163HB
P5	≥ 415	≥ 205	≥ 22	≥ 35	≤ 187HB
P91	585~760	≥ 415	≥ 20	≥ 35	≤ 250HB
P92	≥ 620	≥ 440	≥ 20	≥ 35	250HB

Application

A335/SA335 P91 is suitable for bending, flanging (vanstoning), and similar forming operations and for fusion welding. Its commonly used in below usages.

Superheaters & Reheaters (Boiler tubes).
Main Steam Piping and hot reheat piping.
Headers and manifolds in supercritical and ultra-supercritical coal-fired power plants.
Nuclear power heat exchangers.
Petrochemical high-temperature furnace tubes.
