Shell and Tube Heat Exchanger--- Your Reliable, Efficient Built for Industy

Produktdetails:

Herkunftsort:	China
Markenname:	Yuhong
Zertifizierung:	ASME U Stamped NB PED
Modellnummer:	Wärmetauscher von Hülle und Rohr

Zahlung und Versand AGB:

Min Bestellmenge:	1 Satz
Preis:	Negotaible
Verpackung Informationen:	Seeangemessenes Paket
Lieferzeit:	30 bis 180 Tage
Zahlungsbedingungen:	L/C, T/T
Versorgungsmaterial-Fähigkeit:	Jahr mit 3000 Sätzen

Kontakt

Alle Produkte

Nahtlose Rohre aus Edelstahl (332)

Edelstahl-nahtloses Rohr (324)

Duplexedelstahl-Rohr (134)

Duplexedelstahl-Rohr (37)

Nadelröhre (158)

Flossenröhrchen (705)

Wärmetauscher (31)

Wärmetauscherrohr (459)

Wärmetauscher-Rohrbund (49)

Wärmetauscher-Rohrboden (125)

Wärmetauscherleitblech (39)

Luftkühler (11)

Druckbehälter (4)

Edelstahl geschweißtes Rohr (61)

Edelstahl geschweißtes Rohr (132)

Nickel-Legierungs-Rohr (273)

Nickel-Legierungs-Rohr (103)

Kupferlegierungs-Rohr (250)

Legierter Stahl-Rohr (210)

Titanrohr (20)

helles getempertes Rohr (172)

Rauchrohr (152)

Stahlinstallation (862)

Stahlflansch (660)

Andere (406)

Teile für Verkleidungen (8)

Ausführliche Produkt-Beschreibung

Anwendungen:	Öl- und Gasindustrie	Anwendung:	Öl und Gas, Chemie, Lebensmittelverarbeitung, Bauwesen

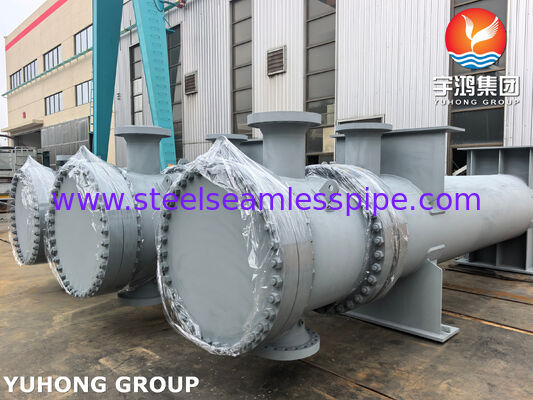

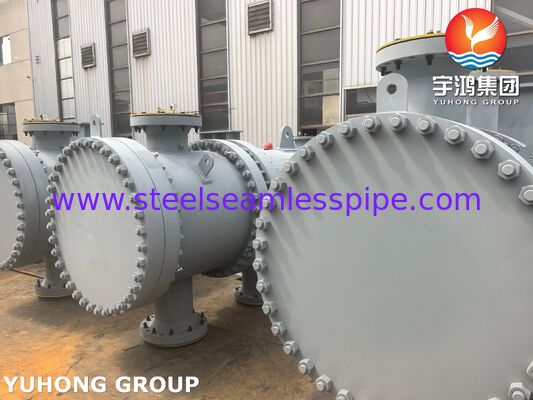

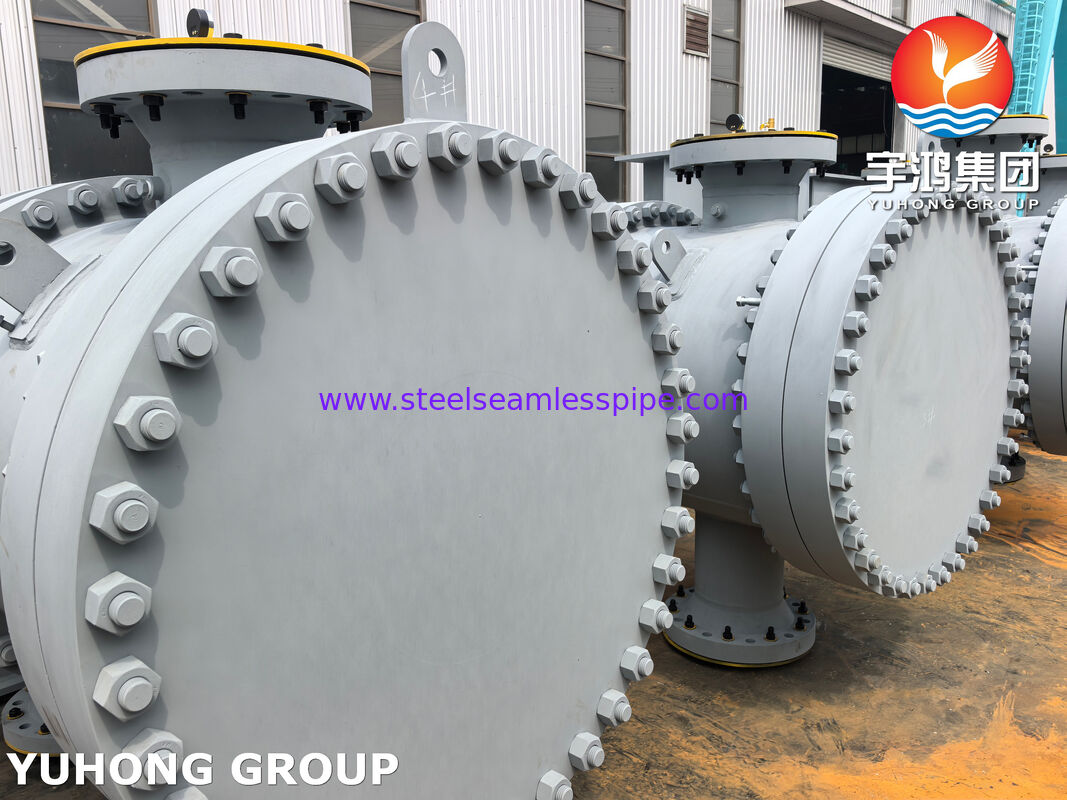

Shell and Tube Heat Exchanger

Reliable. Efficient. Built for Industry.

Product Overview

Our Shell and Tube Heat Exchangers are engineered for high-performance heat transfer in demanding industrial environments. Designed in accordance with international standards (ASME, TEMA, GB/T 151), they provide robust, long-lasting solutions for heating, cooling, condensation, and evaporation processes.

Whether you are in chemical processing, oil & gas, power generation, HVAC, or food production, our heat exchangers deliver consistent thermal efficiency under extreme temperatures and pressures.

Key Features

Feature	Benefit
Heavy-duty construction	Withstands high pressure (up to 30+ MPa) and high temperature (up to 600°C)
Flexible design options	Fixed tube sheet, floating head, and U-tube types to suit various thermal and cleaning requirements
High thermal efficiency	Optimized baffle spacing and tube arrangement (triangular or square pitch) for maximum heat transfer
Corrosion-resistant materials	Available in carbon steel, stainless steel, titanium, and special alloys for aggressive fluids
Easy maintenance	Removable tube bundle options for mechanical cleaning and inspection

Available Configurations

Type	Best For
Fixed Tube Sheet	Low temperature difference, clean fluids on shell side
Floating Head	Large temperature differences, dirty fluids requiring regular cleaning
U-Tube	High temperature / high pressure, thermal expansion concerns

Typical Applications

Oil & Gas - Crude oil heating, gas cooling, refinery condensers
Chemical & Petrochemical - Reactor cooling, solvent recovery, acid heating
Power Plants - Feedwater preheating, turbine exhaust condensation
HVAC & Refrigeration - Chiller evaporators and condensers
Pharmaceutical & Food - Sterilization, pasteurization, and clean-in-place (CIP) systems

Technical Specifications (Typical Range)

Parameter	Value
Heat transfer area	1 m² - 2,500+ m²
Shell diameter	100 mm - 2,500 mm
Tube length	1.5 m - 12 m
Tube outer diameter	12 mm - 51 mm
Design pressure	Vacuum - 35 MPa
Design temperature	-50°C - 600°C

Custom designs are available for specific process conditions.

Why Choose Our Shell and Tube Heat Exchangers?

Our heat exchangers combine robust engineering with flexible design options to meet your specific industrial requirements. With proven performance across multiple industries and compliance with international standards, we deliver reliable thermal solutions that stand up to the most demanding operating conditions.
