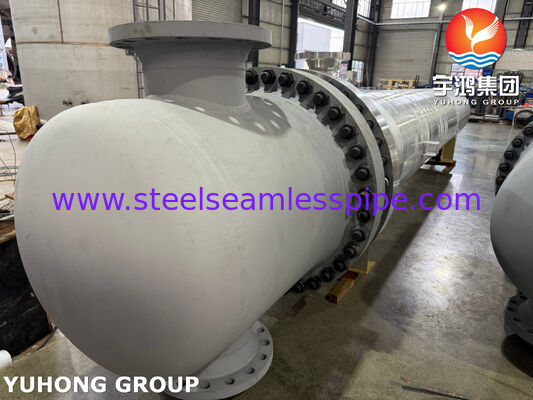

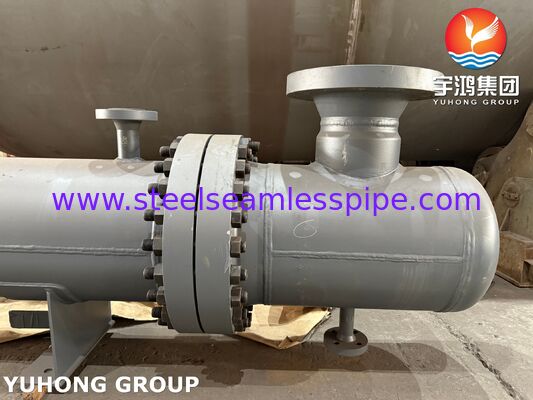

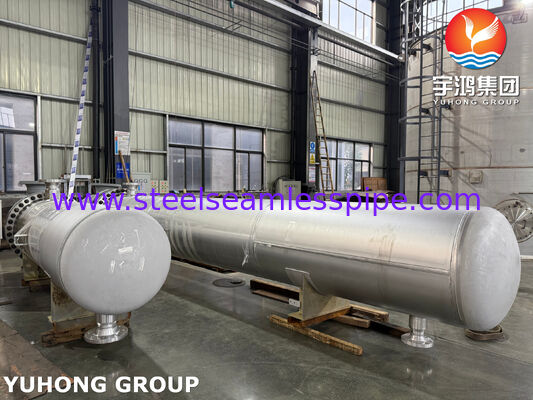

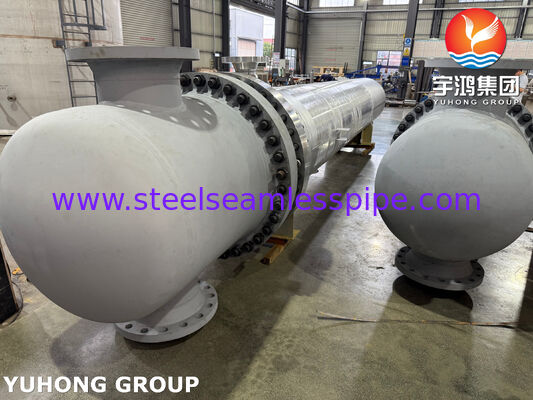

High-Efficiency Industrial TEMA Shell and Tube Heat Exchanger For Power Generation

High-Efficiency Industrial TEMA Shell and Tube Heat Exchanger For Power Generation

Introduction
The Shell and Tube Heat Exchanger from YUHONG GROUP is a premium thermal solution designed for the most demanding industrial environments. Engineered to handle high-pressure and high-temperature processes, this equipment facilitates seamless heat transfer between two fluids. Its robust construction and optimized fluid dynamics ensure maximum energy efficiency and long-term operational stability.

Tube and Tubesheet Technical Excellence

The core of our heat exchanger lies in the precision engineering of its internal components:

TEMA-Grade Heat Exchange Tubes:
We provide a wide array of tubes in specialized alloys, including austenitic stainless steel, duplex, and nickel alloys. Each tube undergoes rigorous eddy-current and hydrostatic testing to ensure zero-defect performance. Our tube spacing and layout are optimized according to TEMA standards to minimize vibration and maximize the heat transfer coefficient.

Precision-Engineered Tube Bundle: We utilize high-grade seamless or welded tubes, ASME SA213 TP316L, (available in Stainless Steel, Carbon Steel, or Duplex Alloys) to provide superior thermal conductivity. Each tube is meticulously inspected to ensure it resists corrosion, scaling, and high-pressure stress, maintaining peak performance throughout its lifecycle.

Advanced Tubesheet, ASME SA182 F316L, Design: The tubesheet, ASME SA182 F316L,  is the critical structural element that supports and seals the tube bundle. Our tubesheets are CNC-machined for exact hole tolerances, ensuring a leak-proof fit. Depending on your application, we offer strength-welded or hydraulically expanded tube-to-tubesheet joints to prevent cross-contamination even under extreme thermal cycling.

Structural Integrity: The integration of the tube bundle and tubesheet is designed to meet ASME and TEMA standards, ensuring the unit can withstand significant differential expansion and vibrations.

Applications
Our shell and tube heat exchangers are widely used in:

1.Petrochemical & Refining: For crude oil cooling and gas condensation.

2.Chemical Industry: Safe handling of corrosive chemicals and reaction cooling.

3.Power Generation: Steam condensing and boiler feedwater heating.

4.HVAC Systems: Large-scale industrial chillers and heat recovery units.

About YUHONG GROUP
YUHONG GROUP is a world-class manufacturer and supplier of industrial piping, tubing, and pressure vessel components. With decades of metallurgical expertise and advanced manufacturing facilities, we provide high-performance thermal solutions that comply with international quality standards. From raw material selection to final non-destructive testing (NDT), YUHONG GROUP is committed to delivering reliability and excellence to global energy and chemical sectors.
