ASTM A213 TP321H Bright Annealed Stainless Steel Seamless Tube with High Corrosion and High-Temperature Creep Resistance for Heat Exchangers

Produktdetails:

Herkunftsort:	China
Markenname:	YUHONG
Zertifizierung:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Modellnummer:	ASTM A213 TP321H

Zahlung und Versand AGB:

Min Bestellmenge:	100 kg
Preis:	Verhandelbar
Verpackung Informationen:	Holzkisten
Lieferzeit:	7-10 Tage
Zahlungsbedingungen:	T/T, L/C
Versorgungsmaterial-Fähigkeit:	Hängt von der Menge ab

Kontakt

Alle Produkte

Nahtlose Rohre aus Edelstahl (322)

Edelstahl-nahtloses Rohr (315)

Duplexedelstahl-Rohr (134)

Duplexedelstahl-Rohr (36)

Nadelröhre (147)

Flossenröhrchen (686)

Wärmetauscher (22)

Wärmetauscherrohr (453)

Wärmetauscher-Rohrbund (46)

Wärmetauscher-Rohrboden (122)

Wärmetauscherleitblech (39)

Luftkühler (9)

Druckbehälter (4)

Edelstahl geschweißtes Rohr (58)

Edelstahl geschweißtes Rohr (125)

Nickel-Legierungs-Rohr (270)

Nickel-Legierungs-Rohr (95)

Kupferlegierungs-Rohr (247)

Legierter Stahl-Rohr (207)

Titanrohr (17)

helles getempertes Rohr (167)

Rauchrohr (151)

Stahlinstallation (838)

Stahlflansch (631)

Andere (404)

Teile für Verkleidungen (8)

Ausführliche Produkt-Beschreibung

Standard:	ASTM A213 / ASME SA213	Material:	A321H (UNS S32109), austenitischer Edelstahl
Typ:	Nahtloses Rohr, blankgeglüht (BA)	Oberfläche:	Blankgeglüht (BA), Ra ≤ 0,5 μm, ölfrei, passiviert
OD:	6 mm – 159 mm (üblich: 12,7 mm, 19,05 mm, 25,4 mm)	WT:	1,0 mm – 10 mm, SCH 10S – SCH 80S (üblich: 1,65 mm, 2,11 mm)
Länge:	6 m, 12 m, feste/zufällige Länge, auf Länge geschnitten (Toleranz ±5 mm)	Endet:	Glattes Ende (PE), entgratet, abgeschrägtes Ende (BE, 37° optional)
Hervorheben:	Bright Annealed Stainless Steel Seamless Tube , High Corrosion Resistance Stainless Steel Seamless Tube , High-Temperature Creep Resistance Austenitic Stainless Steel Tube

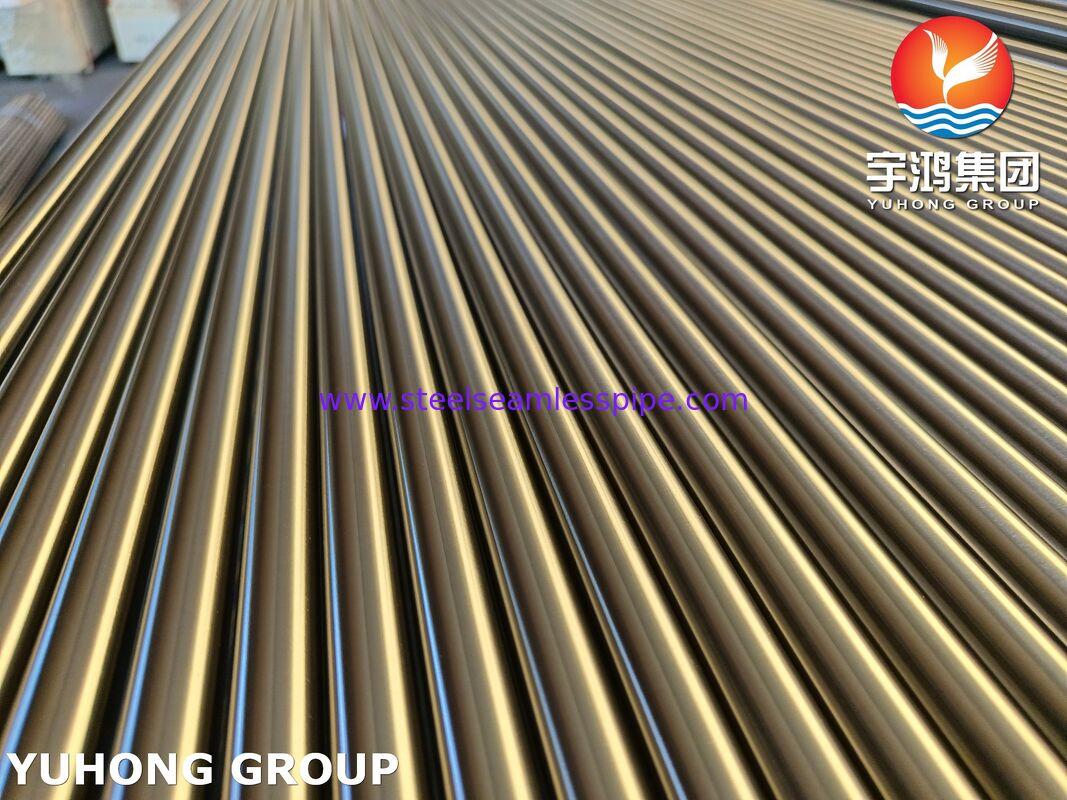

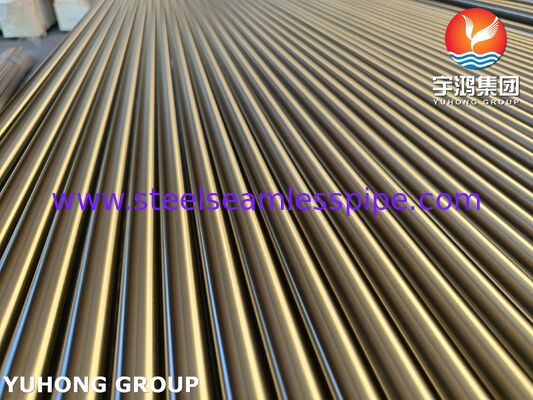

ASTM A213 A321H Bright Annealed Stainless Steel Seamless Tube

Bright annealed seamless stainless steel tubes made from A321H austenitic material, featuring smooth surfaces, high corrosion resistance, and excellent high-temperature creep resistance. Ideal for heat exchangers, boilers, and condensers in demanding industrial applications.

Chemical Composition (wt%)

Material Grade	C	Cr	Ni	Ti	Mn	Si	P	S
A321H (UNS S32109)	0.04-0.10	17.0-19.0	9.0-12.0	5*C-0.70	≤2.00	≤1.00	≤0.045	≤0.030

Quality Assurance Tests

Test Type	Standard
Eddy Current Test (ECT)	ASTM A213
Hydrostatic Pressure Test	ASTM A213
Tensile Strength Test	ASTM E8/E8M
Hardness Test	ASTM E10
Chemical Composition Test (PMI)	Spectrometer
Corrosion Resistance Test	ASTM G48

Key Features

Bright annealed surface ensures clean, smooth, oil-free finish for hygienic and high-corrosion applications
A321H with titanium element provides anti-intergranular corrosion and excellent high-temperature creep resistance (≤870℃)
Compliant with ASTM A213 standard with MTC (EN 10204 3.1) certificate available

Core Product Advantages

High-Temperature Performance: Titanium-stabilized A321H material offers excellent creep resistance at high temperatures (≤870℃) with no deformation after long-term service
Corrosion Resistance: Bright annealed + passivation double protection provides strong resistance to intergranular and medium corrosion
Dimensional Precision: Strict adherence to ASTM A213 standards with precise OD/WT tolerance and smooth tube walls for easy assembly
Hygienic & Easy Maintenance: BA surface is oil-free, dust-free, and smooth with no dirt accumulation, meeting industrial hygienic requirements
Durability: Seamless production process ensures uniform structure, high tensile strength, and toughness for long service life
Versatility: Widely used in heat exchangers, boilers, condensers, and high-temperature chemical processing with customization options
