304/316/316L Staintess Steel Capillary Tube For Medical And Precision Instruments

Produktdetails:

Herkunftsort:	China
Markenname:	YUHONG
Zertifizierung:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008.
Modellnummer:	304/316/316L Kapillarrohr

Zahlung und Versand AGB:

Min Bestellmenge:	100 kg
Preis:	Verhandelbar
Verpackung Informationen:	Holz-Fächer/Eisen-Fächer/Bündel mit Plastikkappe
Delivery Time:	5-80 Days
Zahlungsbedingungen:	Akkreditiv, T/T

Kontakt

Alle Produkte

Nahtlose Rohre aus Edelstahl (285)

Edelstahl-nahtloses Rohr (273)

Duplexedelstahl-Rohr (127)

Duplexedelstahl-Rohr (28)

Nadelröhre (98)

Flossenröhrchen (608)

Wärmetauscher (15)

Wärmetauscherrohr (424)

Wärmetauscher-Rohrbund (37)

Wärmetauscher-Rohrboden (115)

Wärmetauscherleitblech (36)

Luftkühler (7)

Druckbehälter (4)

Edelstahl geschweißtes Rohr (57)

Edelstahl geschweißtes Rohr (112)

Nickel-Legierungs-Rohr (259)

Nickel-Legierungs-Rohr (75)

Kupferlegierungs-Rohr (219)

Legierter Stahl-Rohr (177)

Titanrohr (9)

helles getempertes Rohr (153)

Rauchrohr (138)

Stahlinstallation (791)

Stahlflansch (577)

Andere (386)

Teile für Verkleidungen (5)

Ausführliche Produkt-Beschreibung

Spezifikation:	ASTM A269	Material:	Edelstahl
Technik:	Kaltbezogen/Kaltwalzen oder alle beide	Paket:	Standard-Schifffahrtpaket
Shape:	Round.	Zertifizierung:	ISO/CE/SGS
Hervorheben:	316 Staintess Steel Capillary Tube , 304 Staintess Steel Capillary Tube , 316L Staintess Steel Capillary Tube

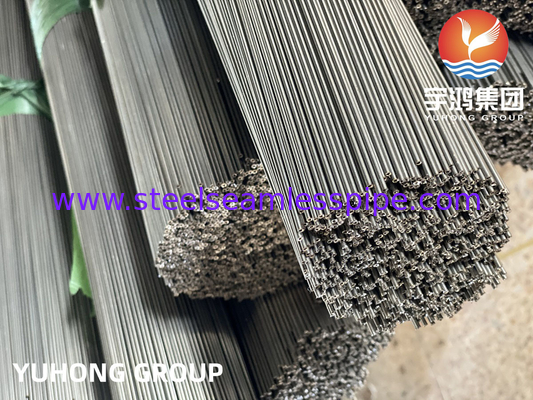

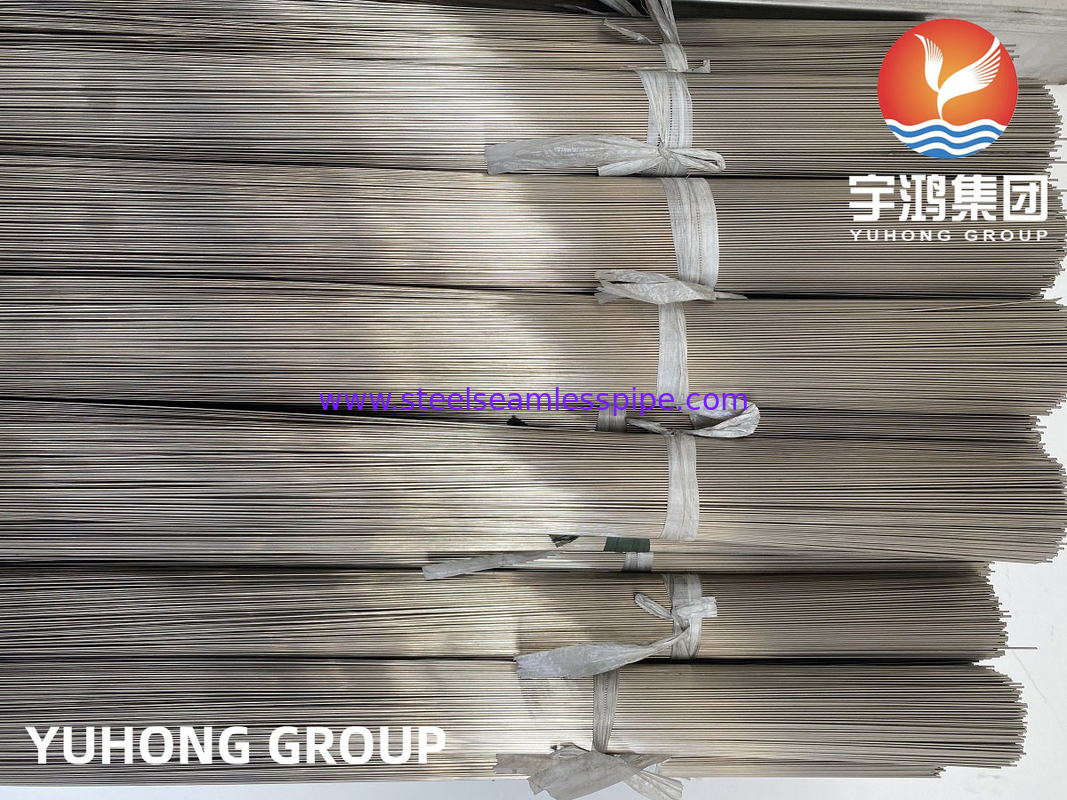

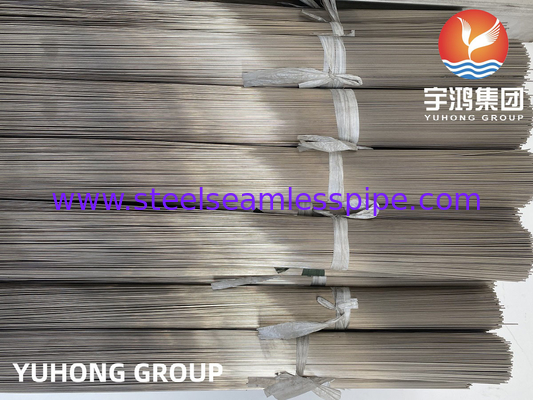

304/316/316L Staintess Steel Capillary Tube For Medical And Precision Instruments

Stainless steel capillary is an ultra-fine, thin-walled precision tube made of stainless steel. Its core features are extremely small inner diameter (usually between 0.1 mm and several millimeters) and strictly controlled dimensional tolerances.

This structure gives it excellent strength, excellent corrosion resistance and high and low temperature resistance, while enabling precise fluid control or as a protective sleeve.

It is widely used in medical devices (such as needles, catheters), analytical instruments (such as chromatographs), aerospace sensors, industrial instruments, and precision fluid systems that require high reliability and cleanliness.

In the medical field, stainless steel capillaries have become core components of high-end medical devices due to their excellent biocompatibility (commonly used 316L medical grade), precise size control (inner diameter can be less than 0.1mm) and sterile surface properties.

Chemical Composition

Chemical Composition	201	202	301	304	316	430
C	≤0.08	≤0.06	≤0.06	≤0.06	≤0.08	≤0.12
S	≤0.02	≤0.02	≤0.03	≤0.03	≤0.03	≤0.03
P	≤0.060	≤0.060	≤0.045	≤0.035	≤0.045	≤0.04
Mn	8.5-10.5	8.5-10.5	≤2.00	≤2.00	≤2.00	≤1.00
Si	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00	≤1.00
Cr	14-15	14-16	16-18	17-20	16-18	16-18
Ni	0.8-1.2	4-6	4-7	8-12	12-16	≤0.05

Mechanical Property

Mechanical Property	Material Item	201	202	304	316
	Tensile Strength	≥535	≥520	≥520	≥520
	Yield Strength	≥245	≥205	≥205	≥205
	Extension	≥30%	≥30%	≥35%	≥35%
	Hardness (HV)	<105	<100	<90	<90
